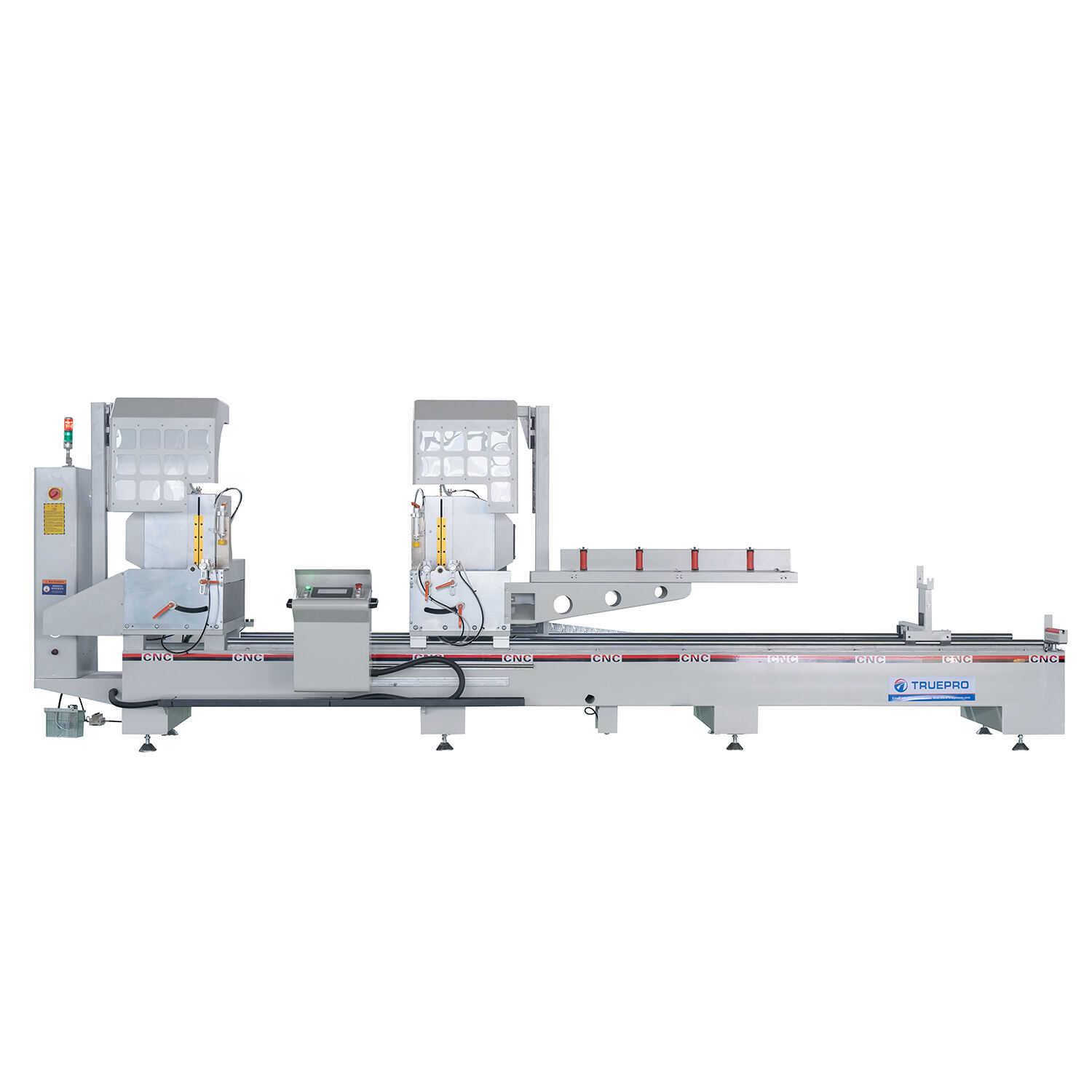

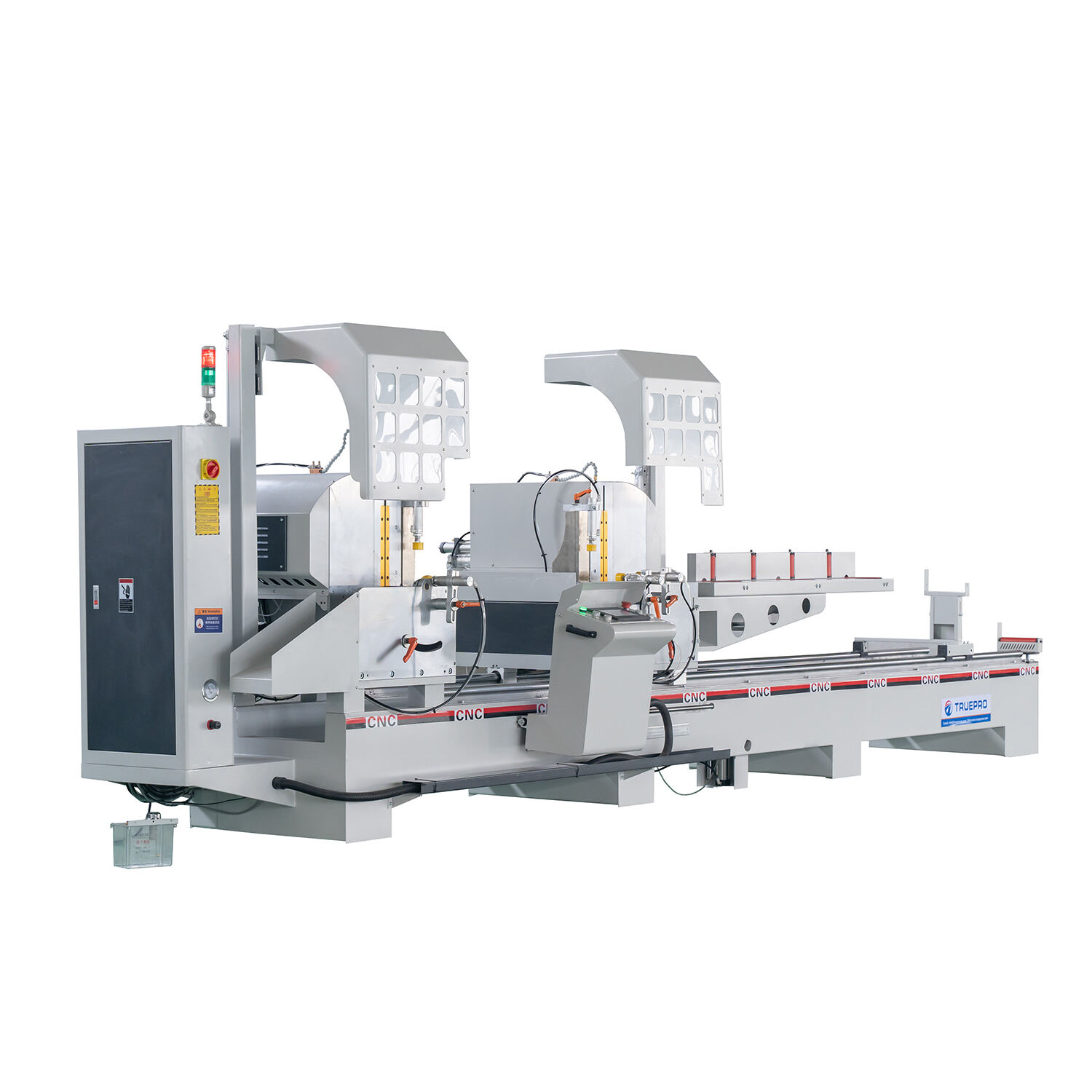

High-Precision Double Head CNC Window Door Deep Processing Aluminum & PVC Cutting Machine Saw
This CNC cutting machine processes aluminum and plastic profiles with carbide blades up to 500 mm. It ensures high precision via ball screw drive and supports dual-blade simultaneous or separate cutting.and the bottom-to-top cutting action enhances safety. Suitable for curtain walls and windows, it offers large cutting capacity and automated operation.
Brand:
Truepro
Description
Product Description
Specification
|
Product name
|
Industrial High Accuracy Window Door Deep Processing Automatic Double Head Aluminum Cutting Saw
|
|
Power supply
|
380V/50Hz
|
|
Cutting motor power
|
2*2.2kW 2800r/min
|
|

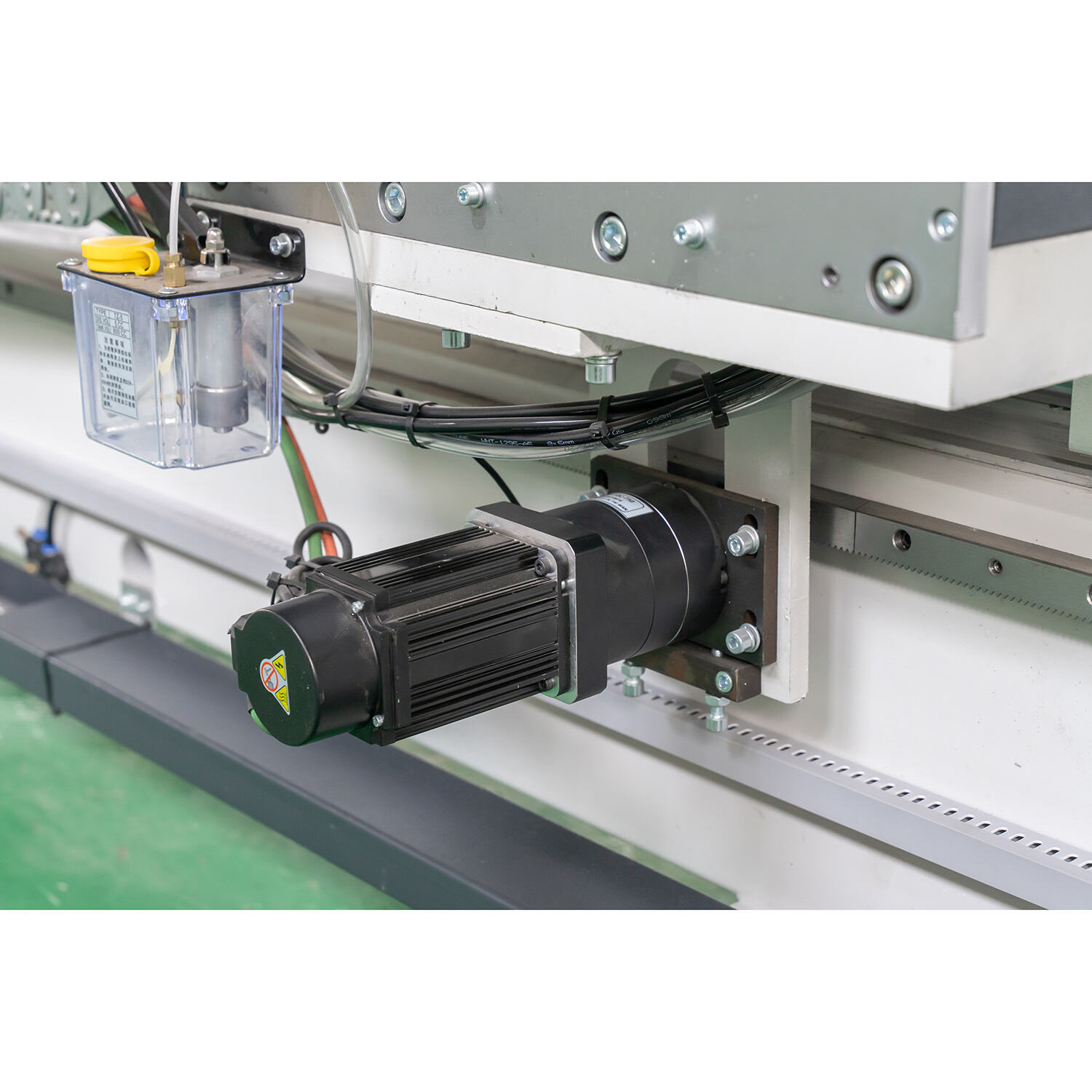

Servomotor power
|
1.5Kw 4050r/min
|
|
Air pressure
|
0.5~0.8MPa
|
|
Air consumption
|
60L/min
|
|
Blade specification
|
500×30*4.4 Z=120
|
|
Cutter feeding speed
|
0~3m/min
|
|
Cutter moving speed range
|
0~20m/min
|
|
Cutting length
|
max 4200mm min 360mm
|
|
Cutting width*height
|
max 150mm×200mm
|
|
Cutting angle
|
90 45 degree
|
|
Overall dimension
|
5900*1750*1950mm
|
|
Weight
|
about 1850kg
|
Company Profile
Jinan Truepro Machinery Co., Ltd. is a leading manufacturer specializing in the research, development, and production of high-performance window machinery, insulating glass processing equipment, and curtain wall systems. Supported by state-of-the-art testing facilities and a highly skilled technical team, the company leverages over 16 years of R&D and manufacturing expertise to deliver precision-engineered solutions.
As one of the top three manufacturers in Jinan—China’s largest and most competitive window machinery production base—we maintain strict quality control throughout the entire manufacturing process, from raw material selection to final assembly. This integrated approach ensures superior performance, durability, and reliability across all product lines.
Guided by the principle “It’s the best that fits most,” we provide tailored engineering solutions to meet unique customer requirements, offering flexible customization across all machines.
Our credibility is further reinforced by being a Key Account supplier, SGS-certified manufacturing standards, and Trade Assurance protection, ensuring secure transactions and on-time delivery worldwide.
FAQ
-
Jinan Truepro is a professional manufacturer based in Shandong, China, specializing in high-quality Insulating Glass Production Lines, Glass Cutting Machines, Glass Processing Machinery, Aluminum & UPVC Window Machines, and Profile Bending Equipment. Established in 2014, our company serves clients across Southeast Asia, Africa, North and South America, Europe, the Middle East, and Asia.
We guarantee product quality through strict pre-production sampling and thorough final inspections before shipment. With a dedicated team of 11–50 experienced professionals, we control every step from raw material selection to finished machine assembly, ensuring reliability and performance. - Our competitive edge lies in our strong R&D capability, comprehensive quality control, customizable solutions, and customer-centric services. We support flexible delivery terms (FOB, CIF), multiple payment options (T/T, L/C, PayPal, Escrow), and communicate fluently in English, Chinese, and German.
- As a trusted supplier verified by SGS and backed by Trade Assurance, we ensure secure and timely transactions for customers worldwide.
