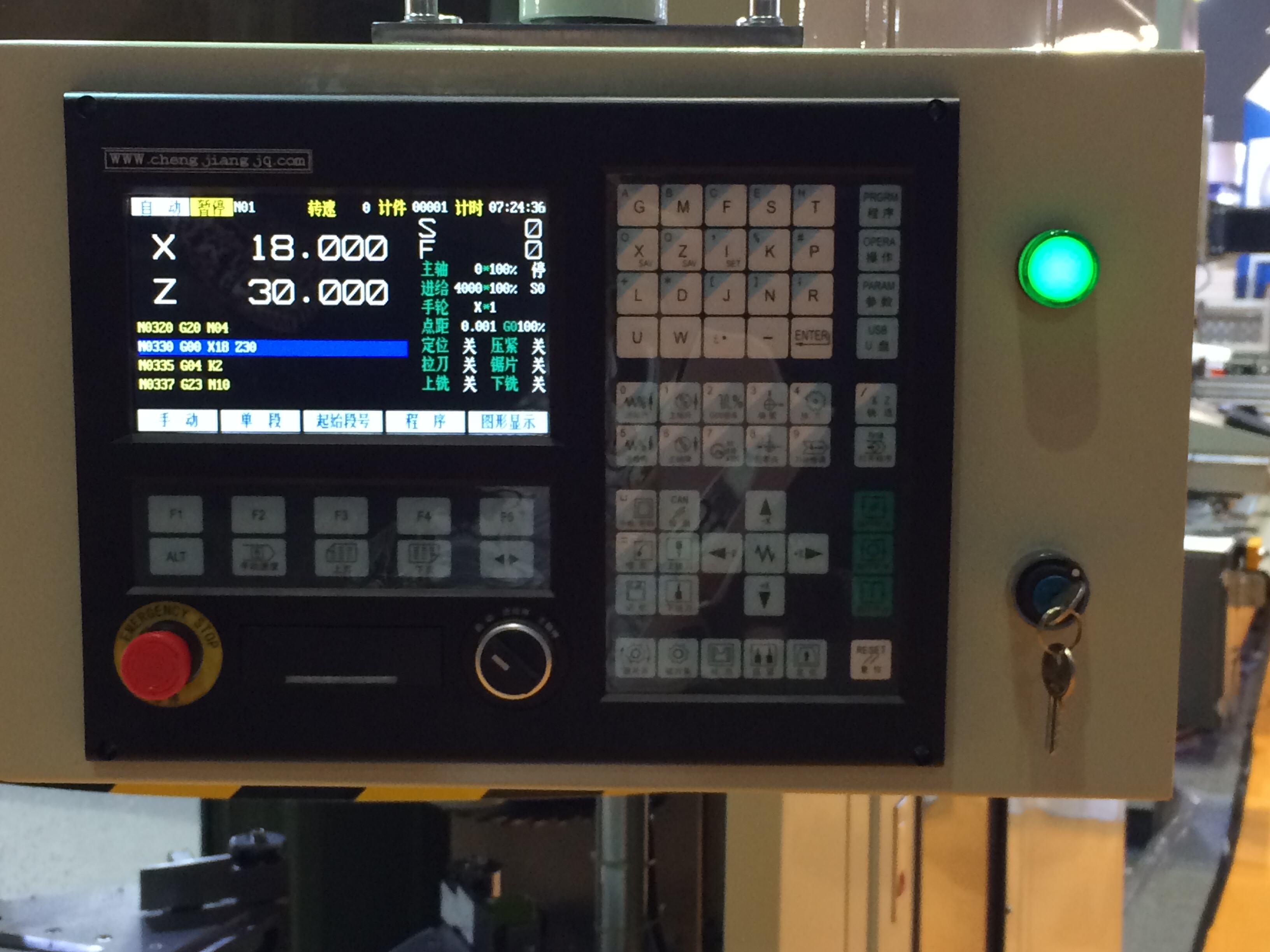

1.It used the most advanced LCD touch screen, and with our company special software, computer interface menu shows, working monitor, touching screen, convenient operation, adjust the cutter can finish simultaneously with the program.
2.The programming is flexible and reliable. Main parts are imported originally, which can ensure guarantee the operation reliability. The machine has the problem protection system and the alarm device.
3.Can be linked with horizontal welding machine to become welding &corner cleaning production line.

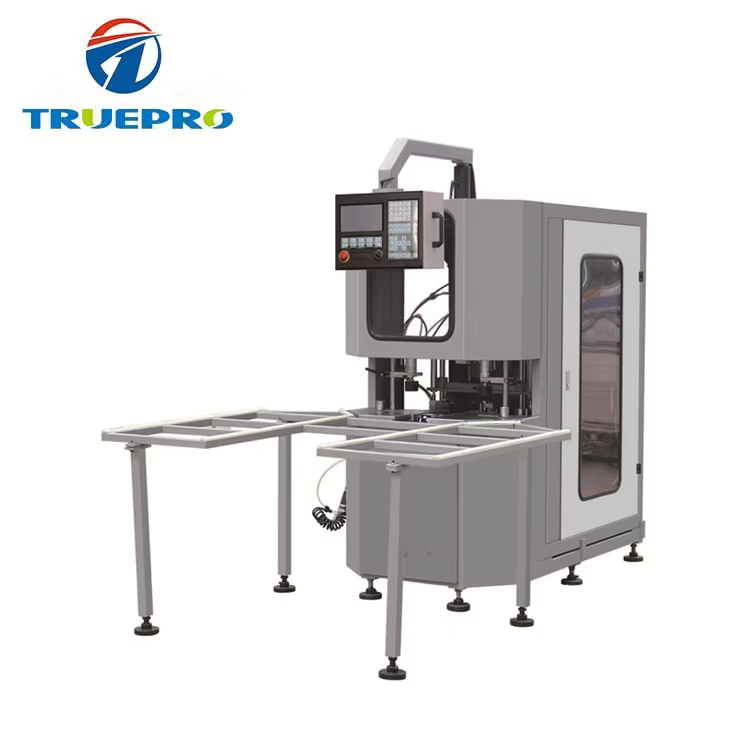

5 Cutter Pvc Upvc Window Door Profiles Processing CNC Corner Cleaning Machine
This system features an intuitive LCD touchscreen with proprietary software for easy menu-based operation and simultaneous tool adjustment. Its reliable programming uses original imported components, and includes fault protection and alarm systems. It can integrate with horizontal welders to form a combined welding and corner cleaning line.
Brand:
Truepro
Description
CNC Corner Clear Machine
Equipment features:
Specification
|
Product name
|
CNC Corner Clean Machine
|
|
Applicable Material
|
PVC, UPVC
|
|
Warranty
|
12months
|
|
Profile width
|
20-120mm
|
|
Profile height
|
30-120mm
|
|
Air consumption
|
60L/min
|
|
Power supply
|
1.4kw
|
|
Input voltage
|
380V 50Hz
|
|
Mill cutter rotary speed
|
2800r/min
|
|
Operation Air Pressure
|
0.5~0.8 MPa
|
|
Air Consumption
|
60 L/min
|
|
Weight
|
700kg
|
|
Overall Dimension
|
2000*1820*1500mm
|
